Convolutional 2D Layer

Problem

Implement a 2D convolutional layer that takes an input matrix and applies a kernel (filter) to produce an output feature map. The operation should support configurable padding and stride parameters to control the spatial dimensions of the output.

Code

import numpy as np

def simple_conv2d(input_matrix: np.ndarray, kernel: np.ndarray, padding: int, stride: int):
    input_height, input_width = input_matrix.shape
    kernel_height, kernel_width = kernel.shape

    # dimension is now h + 2p x w + 2p
    padded_input = np.pad(input_matrix, ((padding, padding), (padding, padding)), mode='constant')

    input_height_padded, input_width_padded = padded_input.shape

    output_height = (input_height_padded - kernel_height) // stride + 1
    output_width = (input_width_padded - kernel_width) // stride + 1
    output_matrix = np.zeros((output_height, output_width))

    for i in range(output_height):
        for j in range(output_width):
            region = padded_input[i*stride:i*stride+kernel_height, j*stride:j*stride+kernel_width]
            output_matrix[i, j] = np.sum(region * kernel)

	return output_matrix

Key Parameters

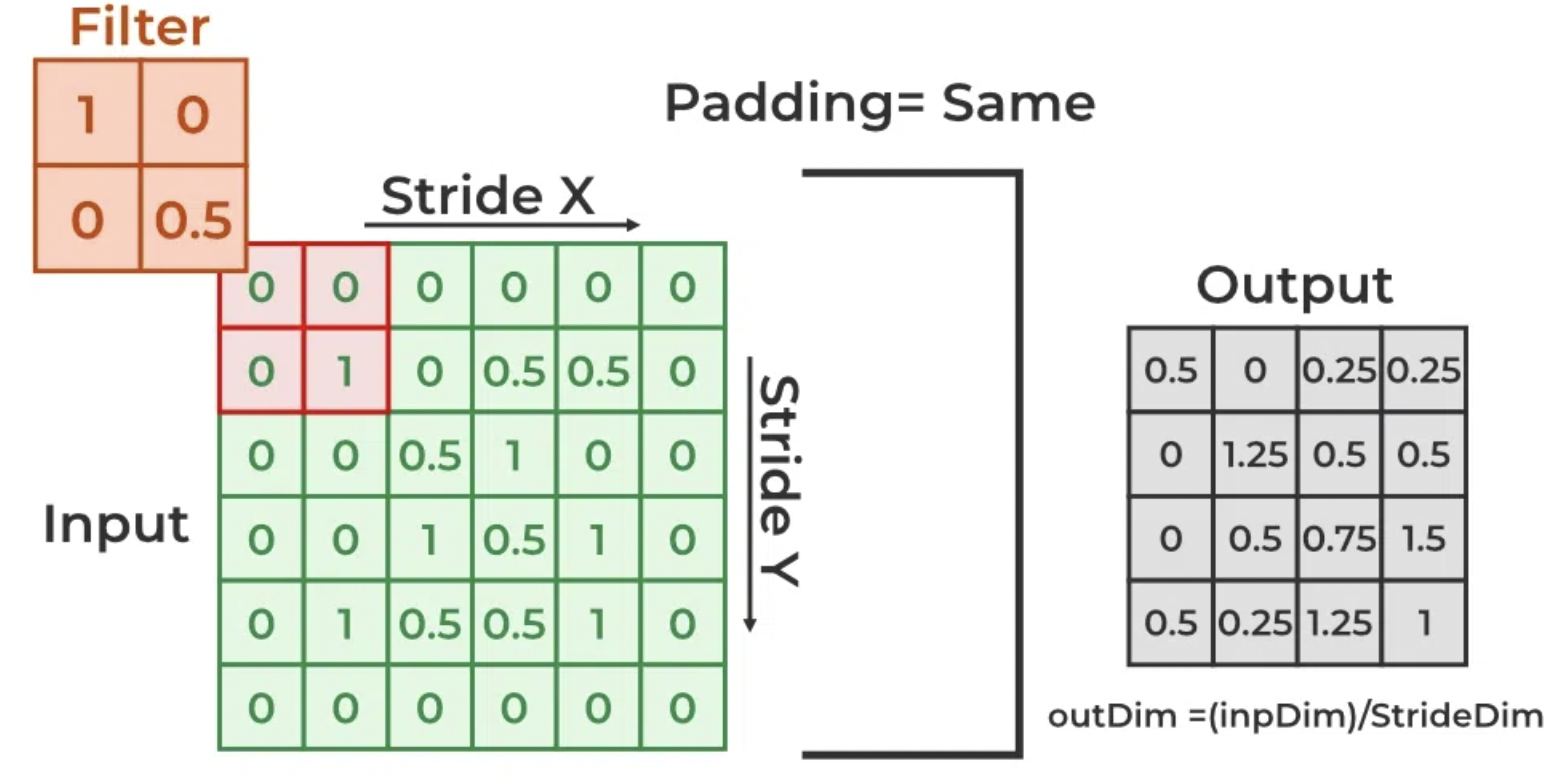

Image Credits: https://www.geeksforgeeks.org/machine-learning/cnn-introduction-to-padding/

1. Padding (p)

• Adds zeros around the border of the input
• Controls the size of the output feature map

2. Stride (s)

• Step size for sliding the kernel
• Larger stride means smaller output dimensions

Formulas

Given:

• Input dimensions: $H \times W$ (height × width)

• Kernel dimensions: $K_h \times K_w$ (kernel height × width)

• Padding: $p$

• Stride: $s$

• Padded input dimensions:

  $H_{\text{padded}} = H + 2p$

  $W_{\text{padded}} = W + 2p$

• Output dimensions:

  $H_{\text{out}} = \left\lfloor \frac{H + 2p - K_h}{s} \right\rfloor + 1$

  $W_{\text{out}} = \left\lfloor \frac{W + 2p - K_w}{s} \right\rfloor + 1$

Where $\lfloor \cdot \rfloor$ denotes the floor function (integer division).
