Kosaraju Variants

25-01-2025graph · scc · kosaraju · dfs

Kosaraju's algorithm finds all strongly connected components in a directed graph in O(V + E) time using two DFS passes: first to order nodes by finish time, then on the reversed graph to identify each SCC.

Introduction to Strongly Connected Components (SCCs)

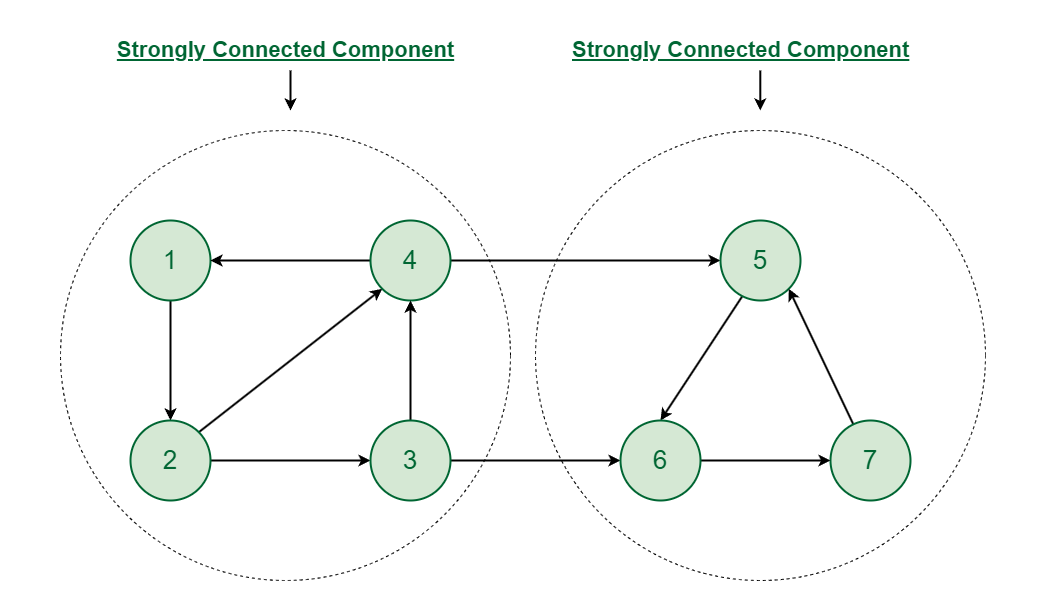

scc Image Credits: https://www.geeksforgeeks.org/dsa/strongly-connected-components/

Strongly Connected Components (SCCs) are maximal subgraphs within a directed graph where every vertex is reachable from every other vertex in the same component
Within an SCC, a bidirectional path exists between all pairs of nodes
If a node cannot reach any others, it forms its own SCC

Variant 1: Count Number of SCCs

How Kosaraju's Algorithm Works

Core Idea: Uses two passes of Depth-First Search (DFS) to identify all strongly connected components in a directed graph
Step 1 - First DFS Pass (Original Graph):
- Perform DFS on the original graph starting from any unvisited node
- Track the order in which nodes finish their DFS exploration
- Store nodes in a stack or list based on their finish times (nodes that finish later are added last)
- This ordering ensures that nodes in earlier SCCs finish before nodes in later SCCs
Step 2 - Graph Reversal:
- Create a reversed graph by flipping all edge directions
- If there was an edge from u to v, now there's an edge from v to u
- This reversal preserves SCCs (nodes strongly connected in the original graph remain strongly connected in the reversed graph)
Step 3 - Second DFS Pass (Reversed Graph):
- Process nodes in reverse finish order from Step 1 (start with nodes that finished last)
- Perform DFS on the reversed graph for each unvisited node
- Each DFS traversal in this step discovers exactly one SCC
- Count the number of times a new DFS is initiated to get the total number of SCCs
Why It Works:
- The first DFS creates an ordering where if there's a path from SCC A to SCC B, then nodes in A finish after nodes in B
- Processing in reverse order on the reversed graph ensures we explore each SCC independently
- The reversal prevents crossing between different SCCs during the second DFS pass
Time Complexity: O(V + E) where V is the number of vertices and E is the number of edges
Space Complexity: O(V) for storing the finish order and reversed graph

Playground: Kosaraju walkthrough

Kosaraju walkthrough

Step through both DFS passes, watch the finish order stack form, and see how SCCs appear in the reversed graph.

Graph preset

Two cycles connected by a one-way bridge.

Phase: Pass 1 (finish order)View: Original graphStep: 1 / 49Finish stack size: 0SCCs found: 0

Step: 1

Pass 1: start DFS from A.

Original graph

visited DFS stack active SCC assigned

Adjacency lists

Original

A->

B->

C->

D->

E->

F->

Reversed

A->

B->

C->

D->

E->

F->

Finish order (bottom to top)

Finish order is empty.

Processing order (top to bottom)

Finish order not ready yet.

DFS stack

Stack is empty.

Strongly connected components

No SCCs finalized yet.

Use the step controls to watch the first DFS build the finish order stack, then switch to the reversed graph to see each SCC get collected in pass 2.

Code (C++)

int kosaraju_count_scc(const vector<vector<int>>& adj) {
    int n = adj.size();
    vector<bool> vis(n, false);
    vector<int> order;
    order.reserve(n);

    // 1) DFS to build finish order
    function<void(int)> dfs1 = [&](int u) {
        vis[u] = true;
        for (int v : adj[u]) {
            if (!vis[v]) dfs1(v);
        }
        order.push_back(u);
    };
    for (int i = 0; i < n; i++) {
        if (!vis[i]) dfs1(i);
    }

    // 2) Build the reversed graph
    vector<vector<int>> radj(n);
    for (int u = 0; u < n; u++) {
        for (int v : adj[u]) {
            radj[v].push_back(u);
        }
    }

    // 3) DFS in reverse finish order on the reversed graph
    fill(vis.begin(), vis.end(), false);
    int scc_count = 0;
    function<void(int)> dfs2 = [&](int u) {
        vis[u] = true;
        for (int v : radj[u]) {
            if (!vis[v]) dfs2(v);
        }
    };
    for (int i = n - 1; i >= 0; --i) {
        int u = order[i];
        if (!vis[u]) {
            dfs2(u);
            scc_count++;
        }
    }

    return scc_count;
}

Code (Python)

def kosaraju_count_scc(adj):
    n = len(adj)
    vis = [False] * n
    order = []

    # 1) DFS to build finish order
    def dfs1(u):
        vis[u] = True
        for v in adj[u]:
            if not vis[v]:
                dfs1(v)
        order.append(u)

    for i in range(n):
        if not vis[i]:
            dfs1(i)

    # 2) Build the reversed graph
    radj = [[] for _ in range(n)]
    for u in range(n):
        for v in adj[u]:
            radj[v].append(u)

    # 3) DFS in reverse finish order on the reversed graph
    vis = [False] * n
    scc_count = 0

    def dfs2(u):
        vis[u] = True
        for v in radj[u]:
            if not vis[v]:
                dfs2(v)

    for i in range(n - 1, -1, -1):
        u = order[i]
        if not vis[u]:
            dfs2(u)
            scc_count += 1

    return scc_count

Variant 2: Find Size of Largest SCC

Slightly modified variant that instead keeps track of the largest SCC

Code (C++)

int kosaraju_max_scc_size(const vector<vector<int>>& adj) {
    int n = adj.size();
    vector<bool> vis(n, false);
    vector<int> order;
    order.reserve(n);

    // 1) DFS to build finish order
    function<void(int)> dfs1 = [&](int u) {
        vis[u] = true;
        for (int v : adj[u]) {
            if (!vis[v]) dfs1(v);
        }
        order.push_back(u);
    };
    for (int i = 0; i < n; i++) {
        if (!vis[i]) dfs1(i);
    }

    // 2) Build the reversed graph
    vector<vector<int>> radj(n);
    for (int u = 0; u < n; u++) {
        for (int v : adj[u]) {
            radj[v].push_back(u);
        }
    }

    // 3) DFS in reverse finish order on the reversed graph, tracking component sizes
    fill(vis.begin(), vis.end(), false);
    int max_size = 0;
    function<int(int)> dfs2_count = [&](int u) {
        vis[u] = true;
        int cnt = 1;
        for (int v : radj[u]) {
            if (!vis[v]) cnt += dfs2_count(v);
        }
        return cnt;
    };
    for (int i = n - 1; i >= 0; --i) {
        int u = order[i];
        if (!vis[u]) {
            int sz = dfs2_count(u);
            max_size = max(max_size, sz);
        }
    }

    return max_size;
}

Code (Python)

def kosaraju_max_scc_size(adj):
    n = len(adj)
    vis = [False] * n
    order = []

    # 1) DFS to build finish order
    def dfs1(u):
        vis[u] = True
        for v in adj[u]:
            if not vis[v]:
                dfs1(v)
        order.append(u)

    for i in range(n):
        if not vis[i]:
            dfs1(i)

    # 2) Build the reversed graph
    radj = [[] for _ in range(n)]
    for u in range(n):
        for v in adj[u]:
            radj[v].append(u)

    # 3) DFS in reverse finish order on the reversed graph, tracking component sizes
    vis = [False] * n
    max_size = 0

    def dfs2_count(u):
        vis[u] = True
        cnt = 1
        for v in radj[u]:
            if not vis[v]:
                cnt += dfs2_count(v)
        return cnt

    for i in range(n - 1, -1, -1):
        u = order[i]
        if not vis[u]:
            sz = dfs2_count(u)
            max_size = max(max_size, sz)

    return max_size
